Đồng hồ đo lưu lượng nước thải điện từ này sử dụng lớp lót chống mài mòn và điện cực chống ăn mòn, được thiết kế đặc biệt cho nước thải, bùn và nước thải công nghiệp. Sản phẩm hỗ trợ báo động đường ống rỗng và đầu ra đa tín hiệu với độ ổn định cao trong điều kiện làm việc nước thải khắc nghiệt.
No internal moving parts, no clogging for wastewater containing sediment
Optional PTFE/PUR wear lining & Hastelloy/Ta anti-abrasion electrodes
Built-in empty pipe, high/low flow fault self-alarm function
Bidirectional flow measurement, separate forward/reverse totalizer
Multi-output: 4-20mA, pulse, RS485 Modbus, optional HART/Bluetooth
IP65 converter & IP68 submersible sensor for underground sewage tanks
Wide medium temp -20~180℃, strong anti-interference

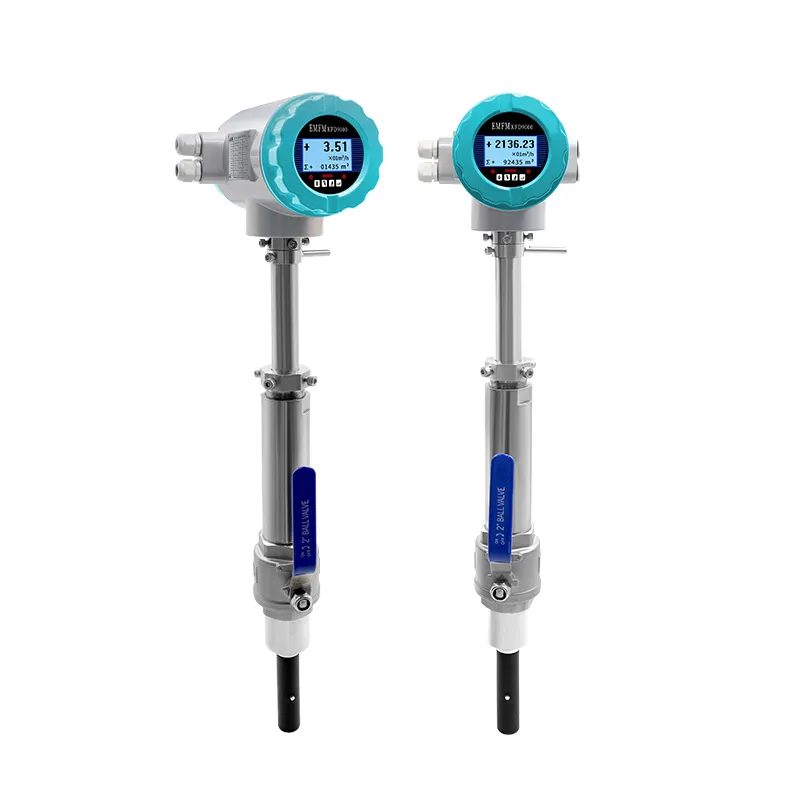

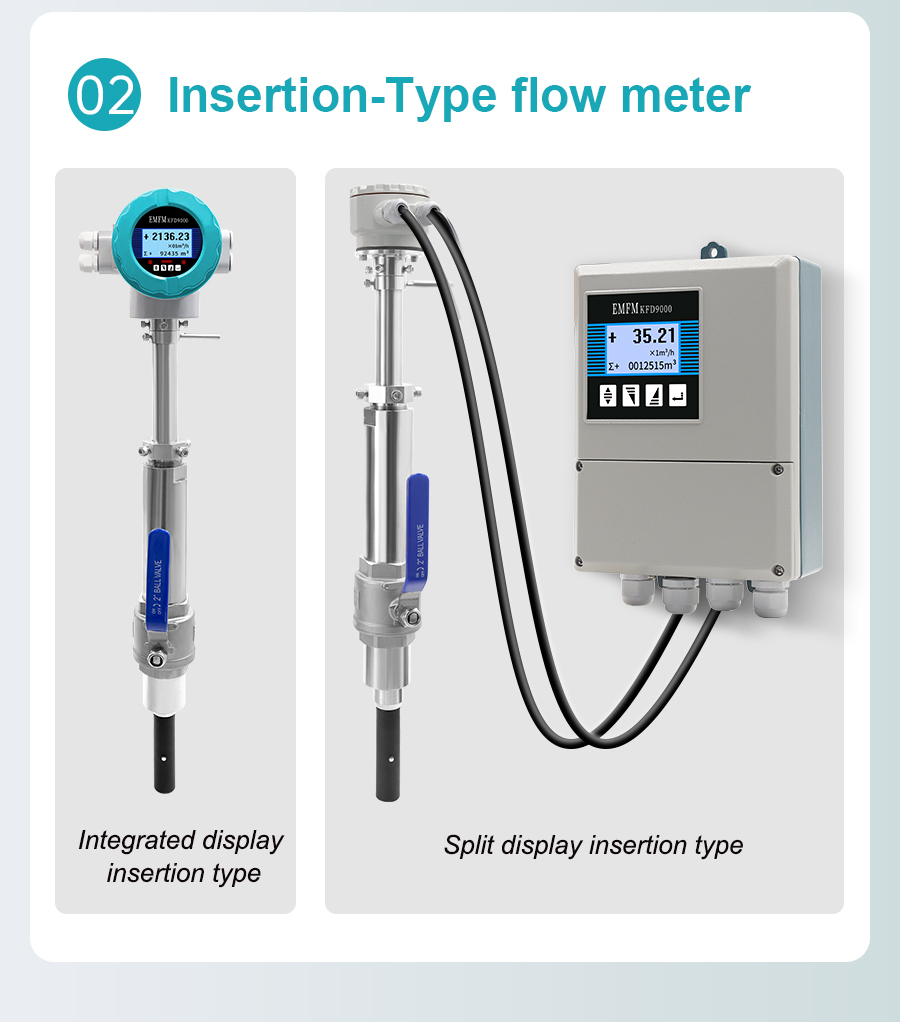

Flange/plug-in installation for new & old sewage pipelines

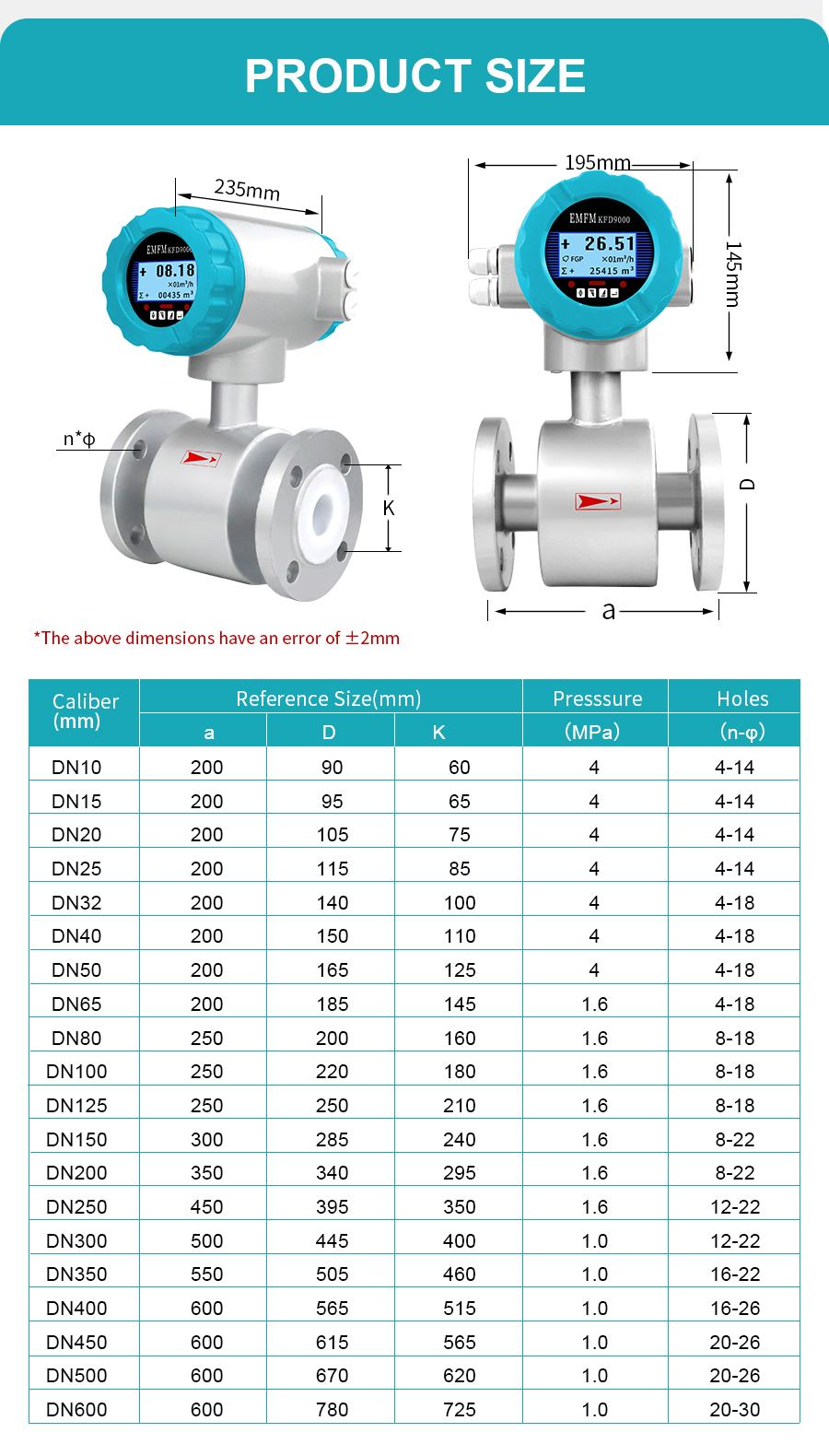

| Nominal Diameter (mm) | Pipe type with PTFE lining: DN10 ~ DN500; Pipe type with rubber lining: DN65 ~ DN1200 |
| Accuracy Class | Class 0.5; Class 1.0 |
| Medium Temperature | Ordinary rubber lining: -20 ~ +70℃; PTFE lining: -20 ~ +120℃ |
| Pressure Class | 0.6MPa, 1.0MPa, 1.6MPa, 4.0MPa (higher pressure can be customized) |

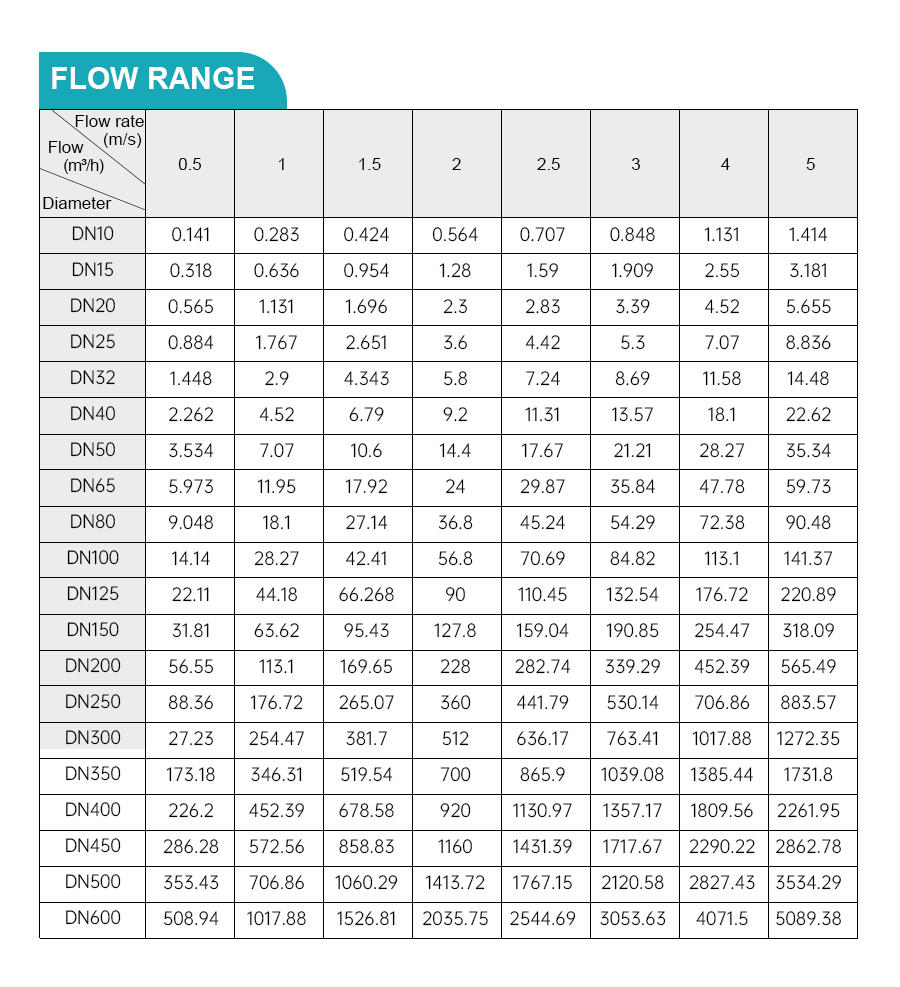

| Flow Measurement Range | The flow measurement range corresponds to a flow velocity range of 0.5~5m/s |
| Conductivity Range | Fluid conductivity ≥50μs/cm, the conductivity of water is in the range of 200-800μs/cm |
| Signal Output | Pulse, 4-20mA, RS485 |
| Digital Frequency Output | The frequency can be set within 1-5000Hz, the maximum collector current is 250mA when the external power supply ≤35V is turned on |
| Power Supply | 220V, DC24V; Battery power supply |

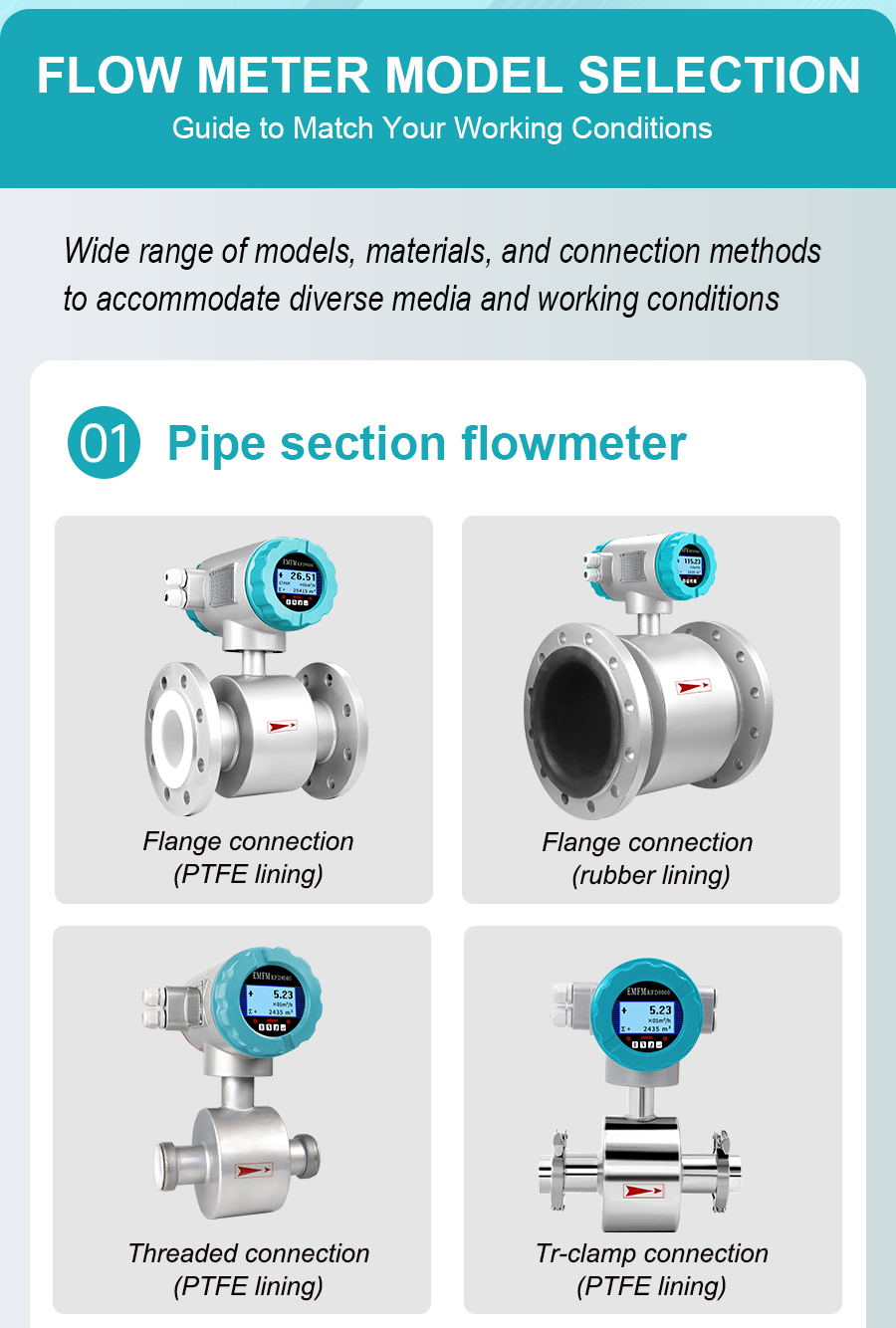

| Connection Method | Flange, thread, clamp |
| Explosion-proof Mark | Ex db mb IIC T6 Gb |
| Ambient Temperature and Humidity | -25℃ ~ +60℃; 5%RH~95%RH |
| Total Power Consumption | <20W |
