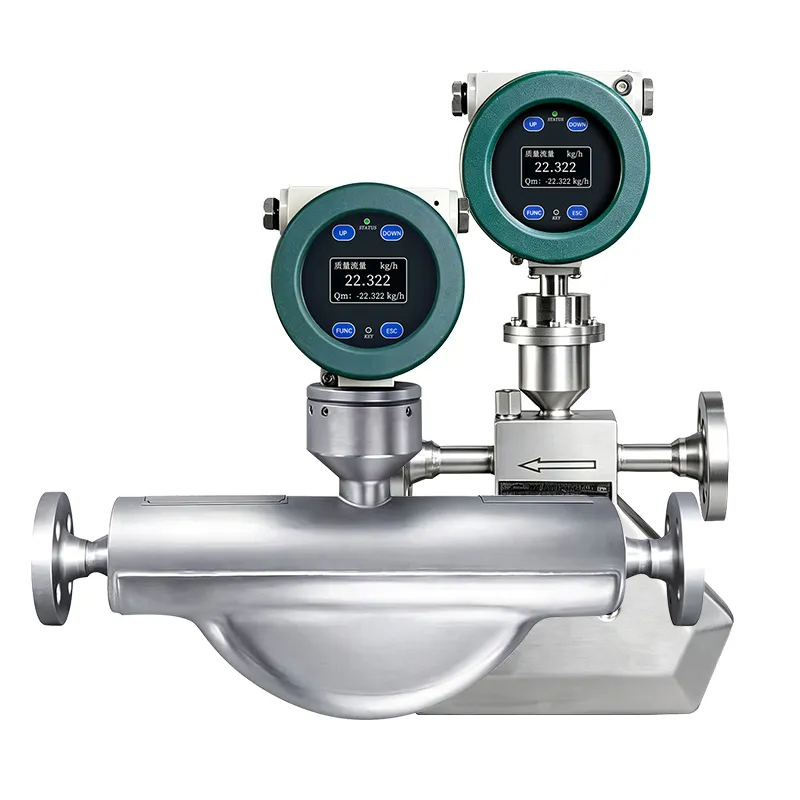

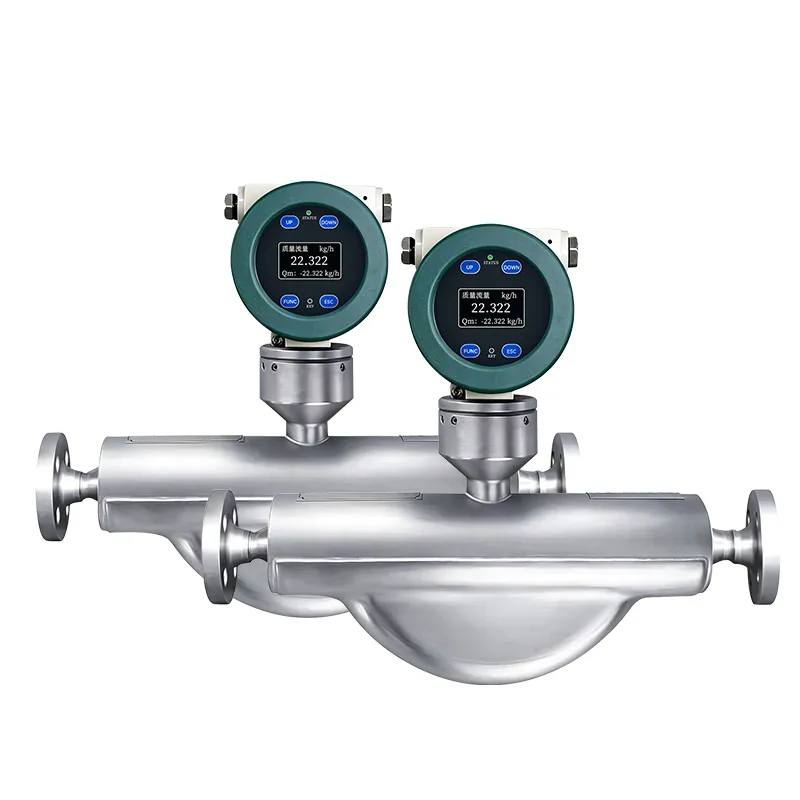

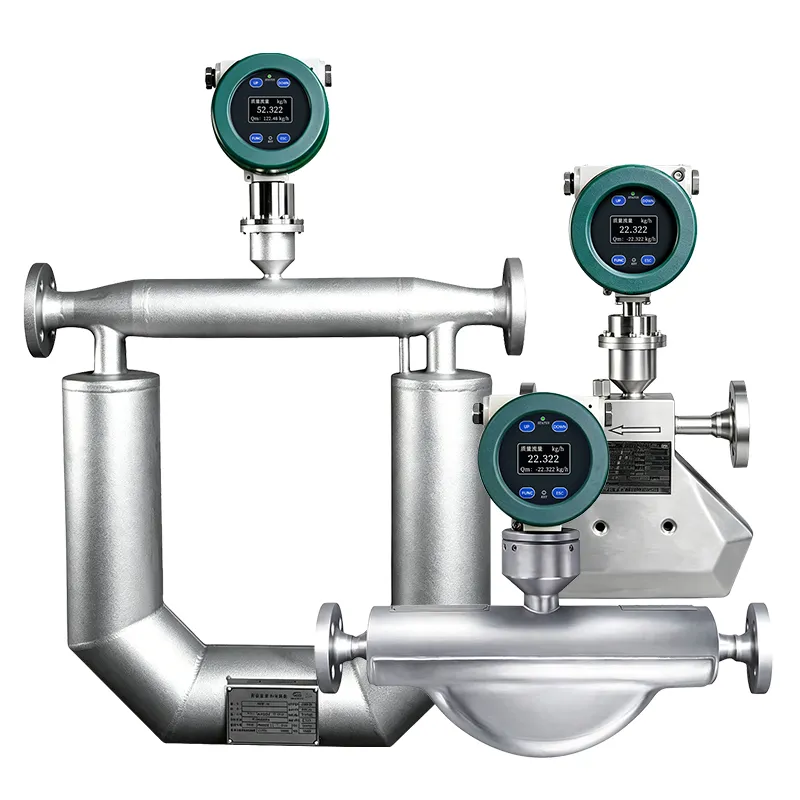

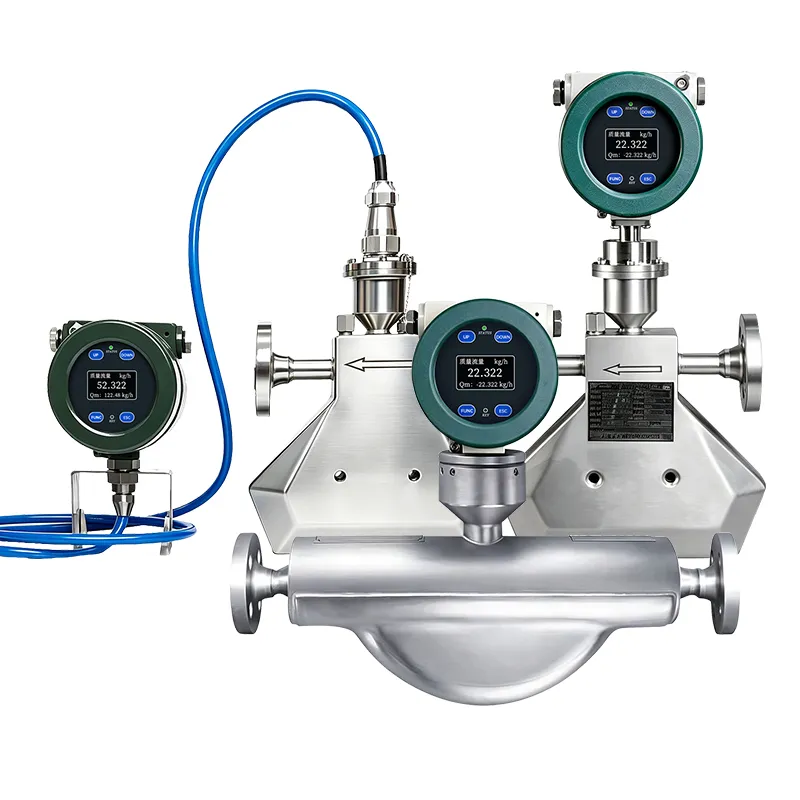

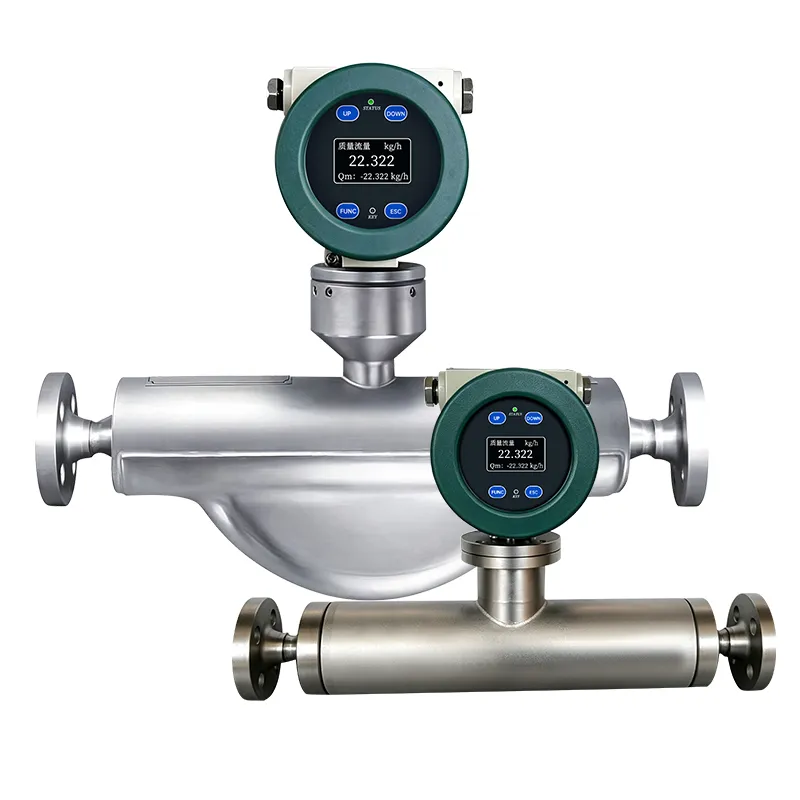

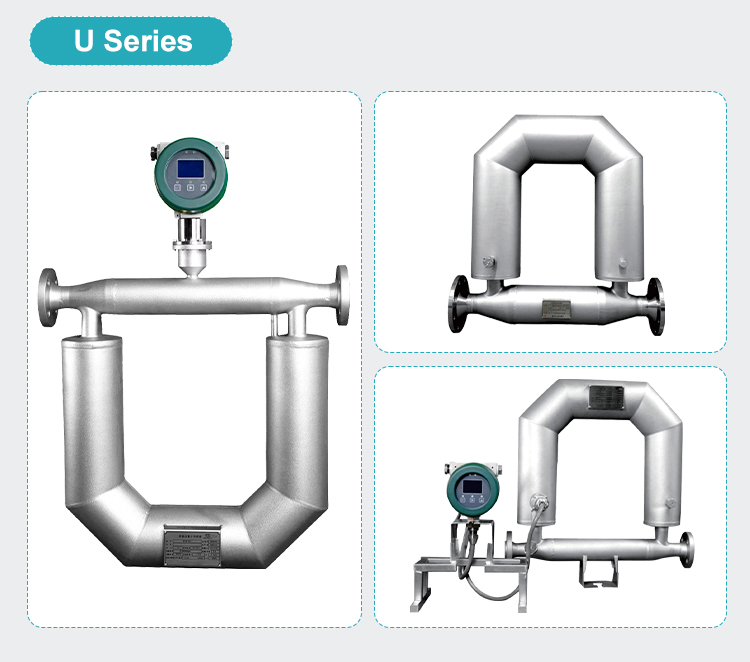

Máy đo lưu lượng coriolis uốn nhỏ

máy đo lưu lượng coriolis uốn vi mô áp dụng nguyên lý coriolis, đo trực tiếp lưu lượng khối lượng, mật độ trung bình và nhiệt độ. Ống đo ss316l, độ chính xác cao 0.1 ~ 0.5%, không yêu cầu ống thẳng, phù hợp với bùn, chất lỏng có độ nhớt cao, với đầu ra 4-20ma, xung và rs485.

Features of Micro-bending Coriolis Mass Flow Meter

Based on Coriolis force principle, directly measure mass flow without temperature/pressure compensation
Simultaneously detect medium density and temperature for concentration conversion
High measuring accuracy up to ±0.1%, repeatability superior to half accuracy grade

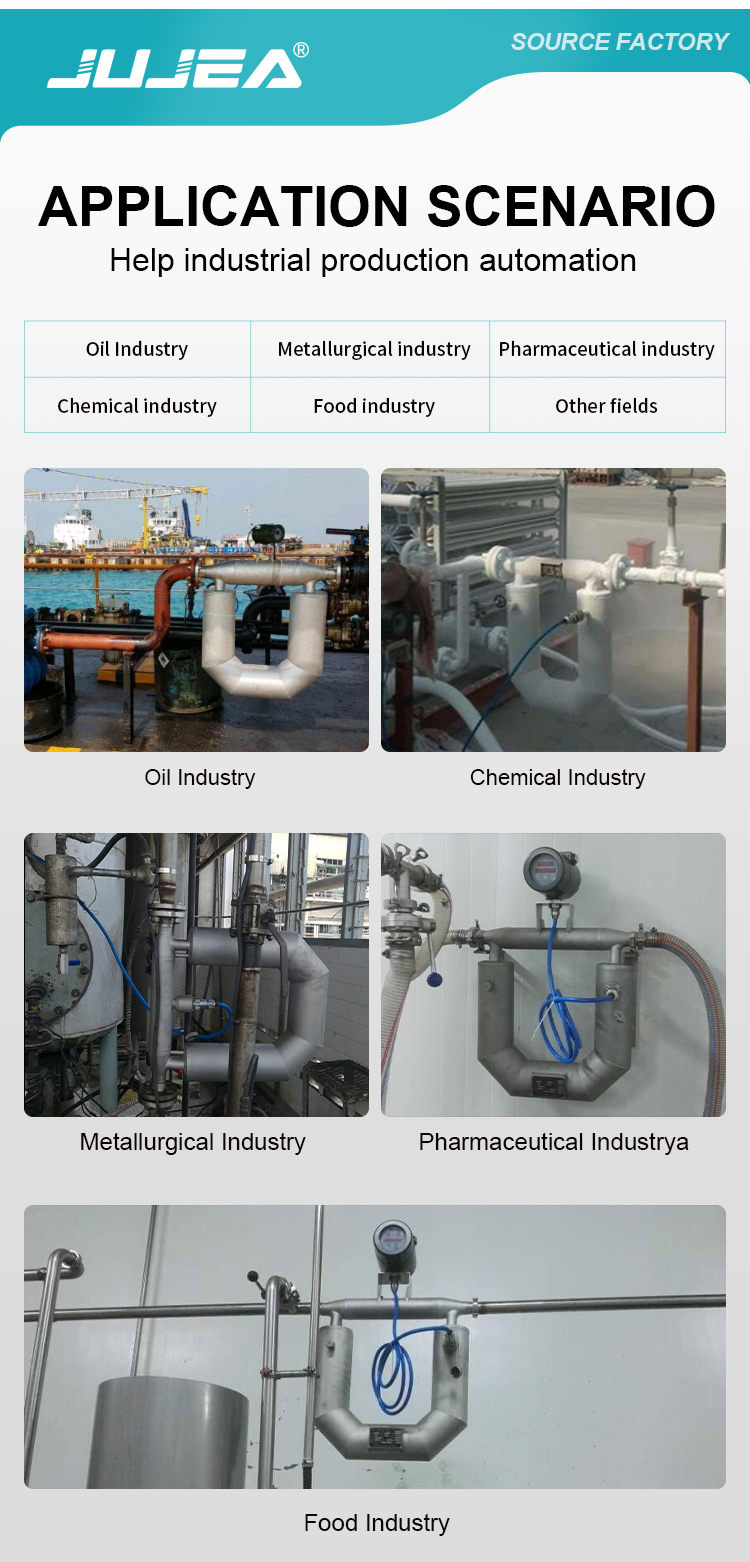

Wide applicability: gas,liquid, slurry, suspension and high-viscosity media

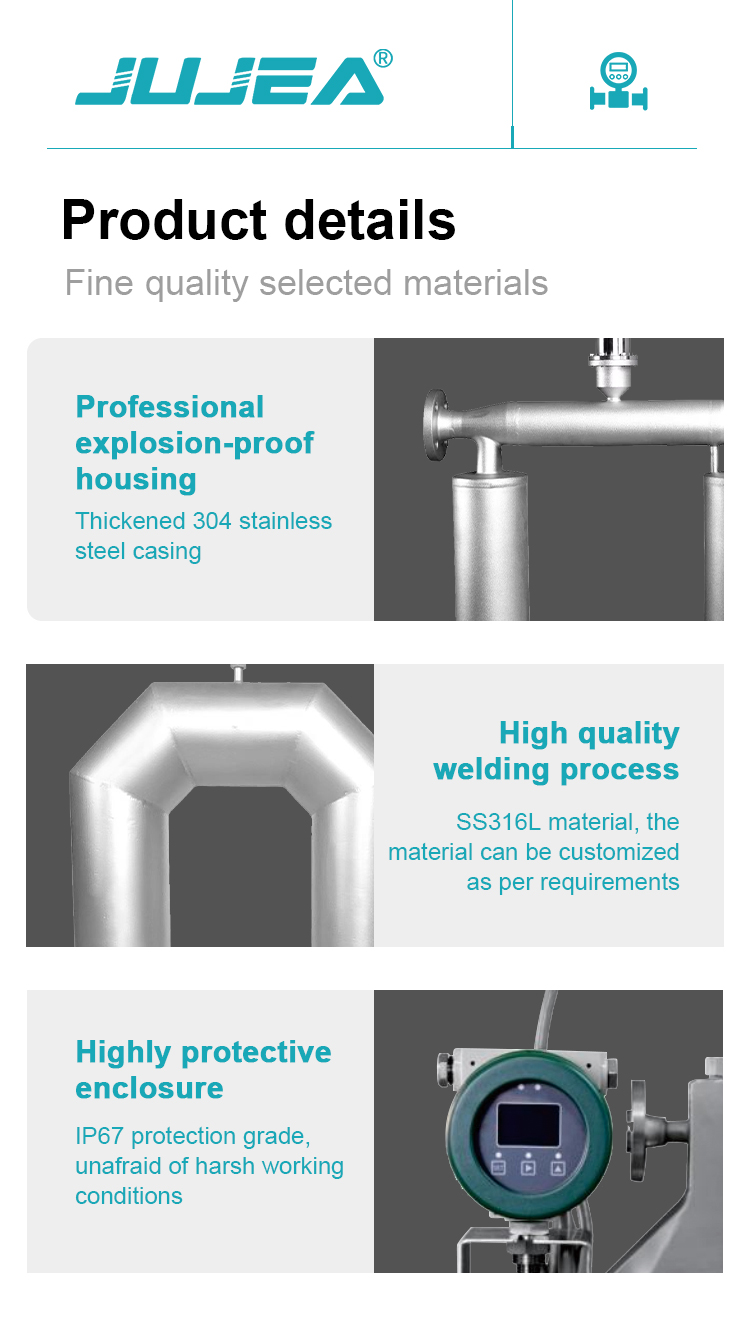

SS316L measuring tube, SS304 housing, optional sanitary flange structure
Multiple signal outputs: 4-20mA, frequency pulse, Modbus RS485 / HART
Medium temperature range -50~200℃, max working pressure up to 4.0MPa

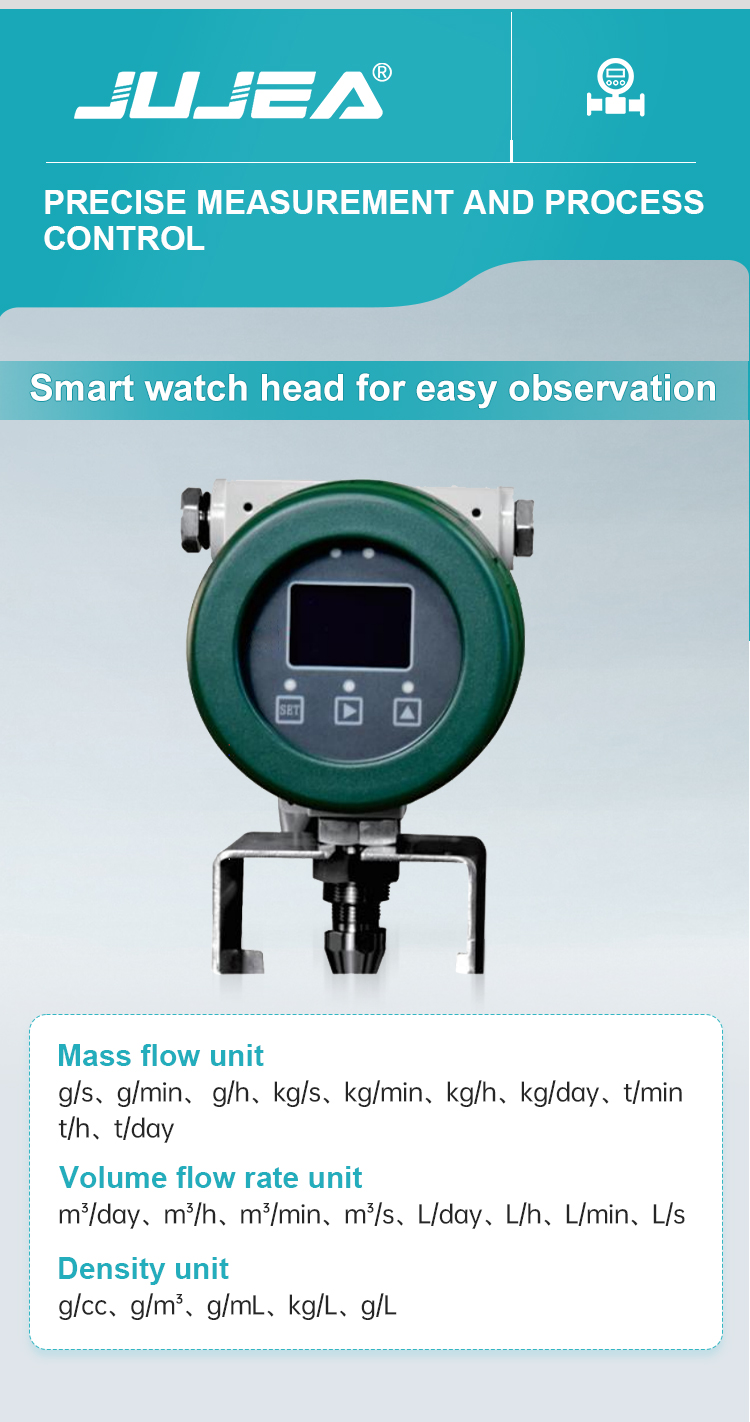

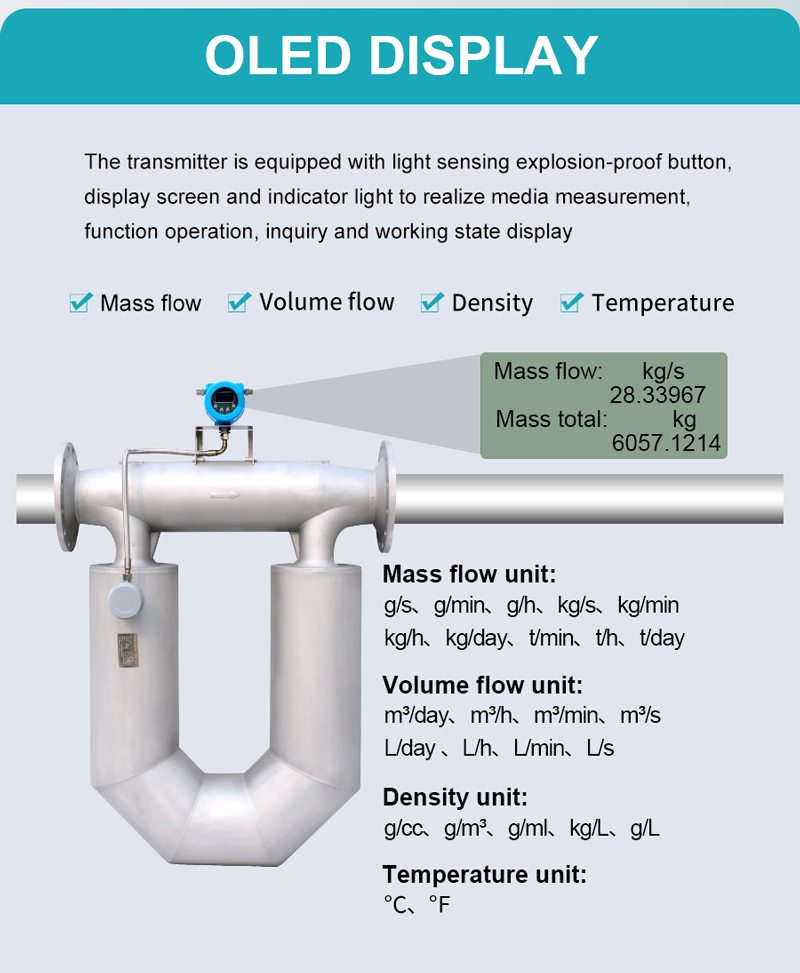

Integrated local touch LCD, real-time display mass/volume flow, density and totalizer
Explosion-proof ExdbiaⅡCT6 grade, suitable for flammable and explosive industrial sites

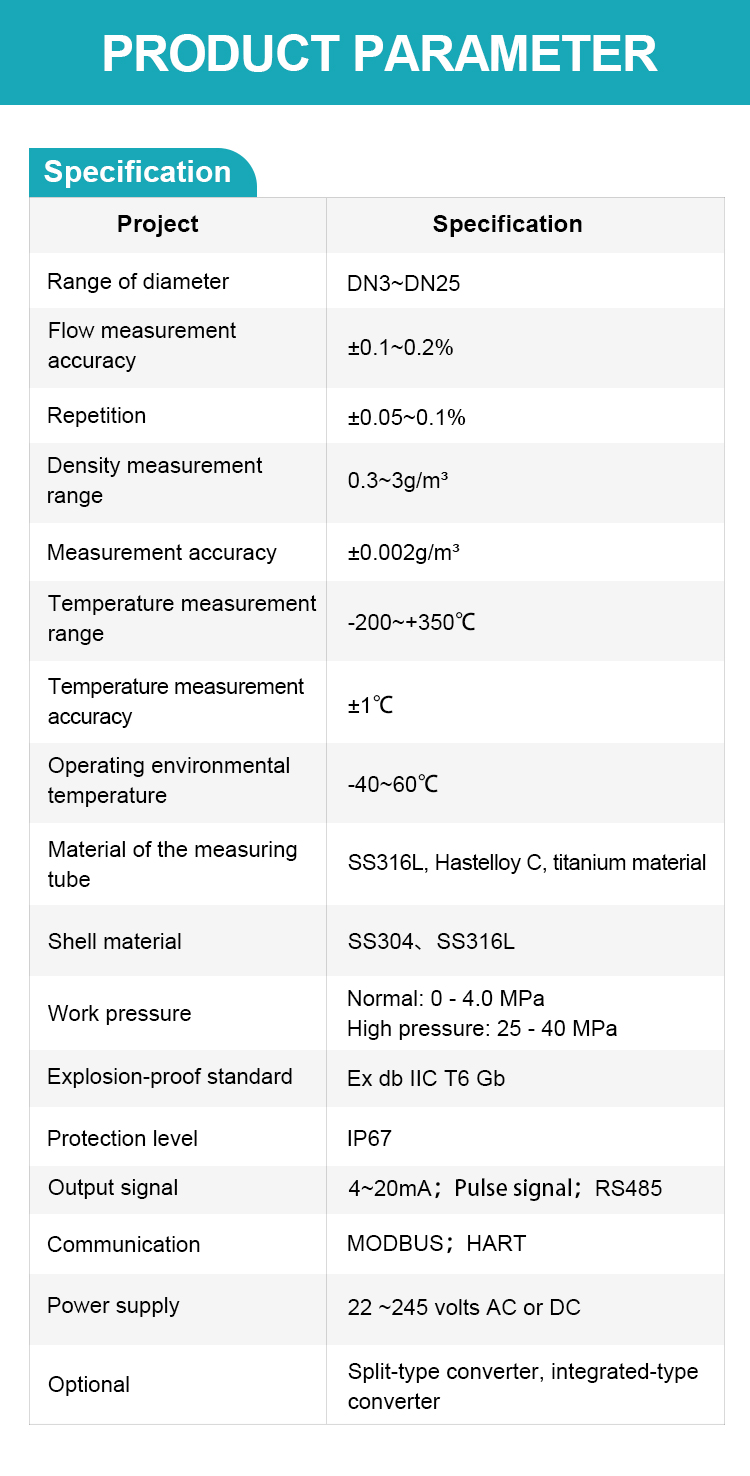

Specification of Micro-bending Coriolis Mass Flow Meter

Measuring Caliber Range	DN3~DN25
Flow Measurement Accuracy	±0.1~0.2%
Repeatability	±0.05~0.1%
Density Measurement Range	0.3~3g/m³
Measurement Accuracy	±0.002g/m³
Temperature Measurement Range	-200~+350°C
Measurement Accuracy	±1°C
Operating Ambient Temperature	-40~60°C
Measuring Tube Material	SS316L, Hastelloy C, Titanium
Housing Material	SS304, SS316L
Working Pressure	Conventional 0~4.0MPa; High pressure 25~40MPa
Explosion-proof Standard	Ex db IIC T6 Gb
Protection Class	IP67

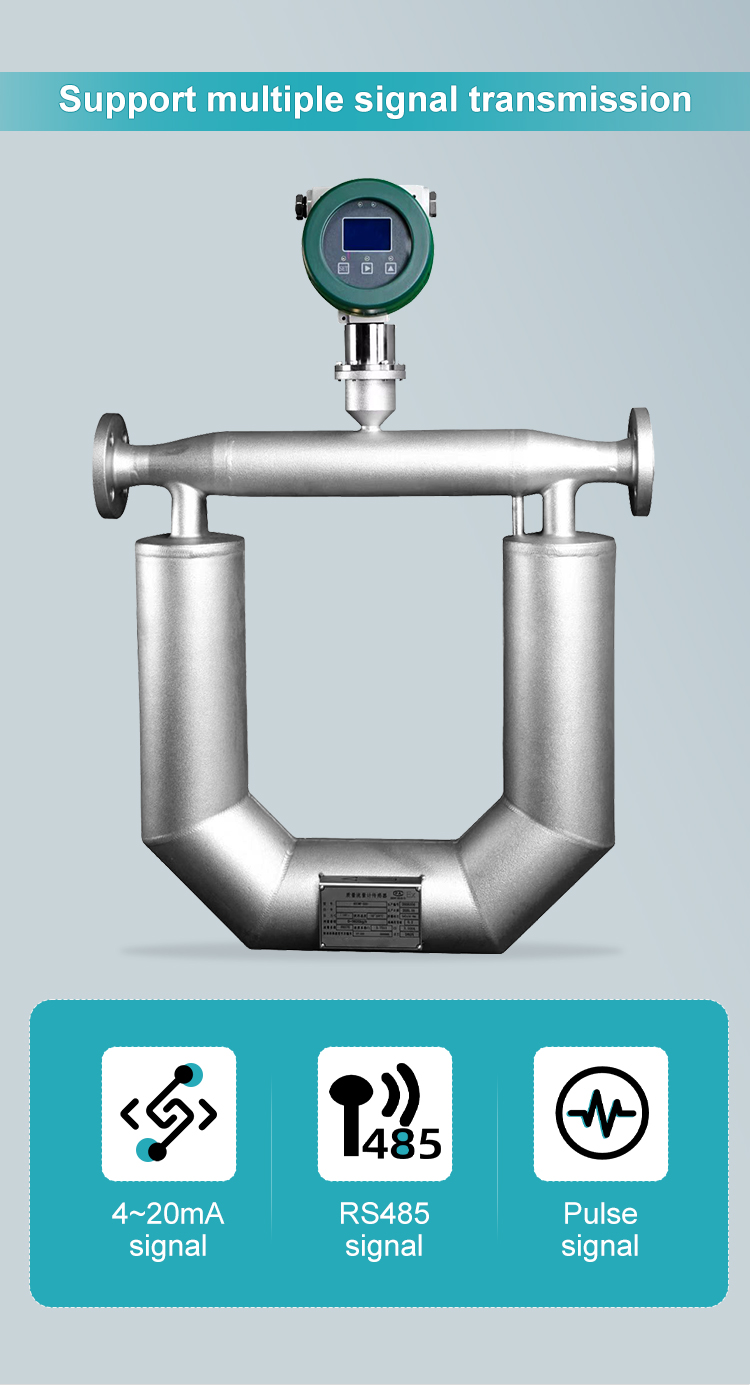

Output Signal	4~20mA; Pulse signal; RS485
Communication	MODBUS; HART
Power Supply	22~245V AC or DC
LCD Display Content	Instantaneous flow, cumulative flow, temperature, density, concentration, positive and negative cumulative; with power-off data saving and data loss recovery function.
Optional	Split converter, integrated converter
